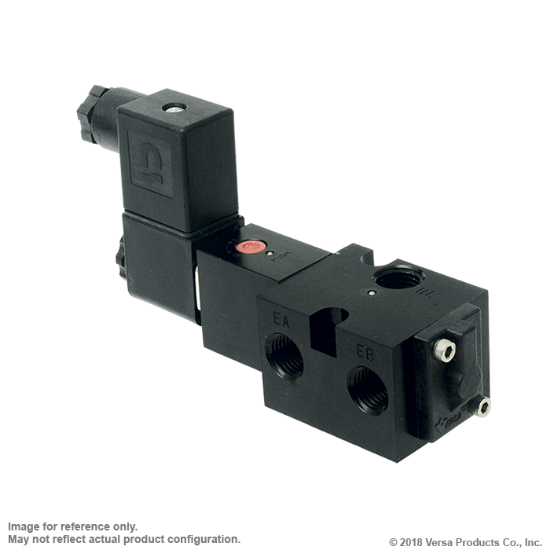

Versa - CPP-4212-NB1 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum
Versa - CPP-4212-NB1 VALVE, 4-WAY, ALUM C - C5 Namur Aluminum
SKU: VS-CPP-4212-NB1
Manufacturer part number: CPP-4212-NB1
VERSA C NAMUR-SERIES DIRECTIONAL CONTROL VALVE
The Versa aluminum NAMUR mount control valves are high flow, bubbletight, direct acting or solenoid/pilot operated. They are designed to mount directly to any NAMUR actuator, thus reducing actuator response time and cost of tubing, fittings, brackets, and labor.
Product Features
- NAMUR 1/4" NPT ports
- Constructed of hard yet lightweight, corrosion-resistant anodized aluminum
- Valve body directly mountable to any NAMUR footprint reducing actuator response time and eliminating need for fittings, tubing or brackets
- FKM o-ring seals perform reliably with exposure to hydrocarbons or highly corrosive fluids over a broad temperature range: equivalent to Viton®, Fluorel®
100% Leak Tested • 10-Year Warranty
SpecificationsLead Time (Working Days): | 20 20 |
---|
Actuation | Double Pilot |
---|
Function | 4-way, 2-pos |
---|
Media(S) | Air/Inert Gas, Natural Gas |
---|
Temp Range (F) | -4°F to 203°F |
---|
Temp Range (C) | -20°C to 95°C |
---|
Flow | 0.75 Cv |
---|
Port Size/Type | NAMUR 1/4" NPT ports |
---|
Pressure Range (PSI) | VAC-115 psi |
---|
Pressure Range (BAR) | VAC-7.93 bar |
---|
Pilot Port Size | 1/8" NPT |
---|
Pilot Type | Remote Pilot |
---|
Pilot Range (PSI) | 10-115 psi |
---|
Pilot Range (BAR) | 0.70-7.93 bar |
---|
Body & Internal Parts | Aluminum |
---|
Seal Mtl | FKM |
---|
Series | C5 NAMUR Aluminum |
---|
Weight | 0.81 lb |
---|
Weight (Kg) | 0.37 kg |
---|
