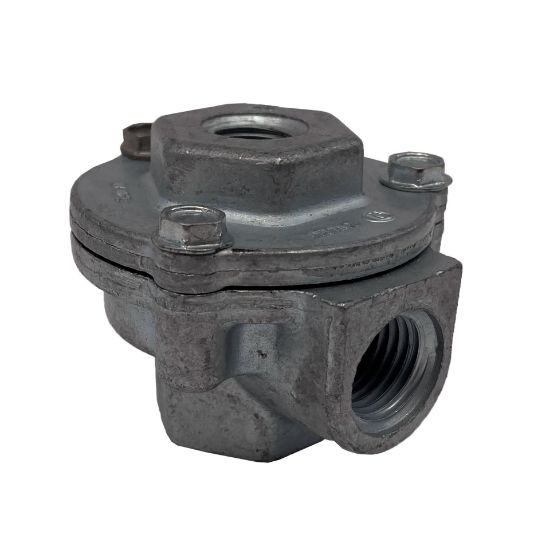

Deltrol EV125A2 quick exhaust valve

EV-125-A2
Manufacturer: Deltrol Fluid Products
SKU: DL-EV125A2
Manufacturer part number: EV125A2
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Deltrol EV-125A2  quick exhaust valve

DESCRIPTION

Deltrol's quick exhaust valves provide fast dumping of exhaust air at the cylinder, eliminating the need for large selector valves ordinarily required to accommodate exhaust air moving back through the pneumatic system. Substantial front end savings and better operating efficiency result from the use of smaller air system components. In addition, smoother, faster cylinder operation and wider application of air-powered motions are obtained.

The quick exhaust valve has been designed with smooth, over-size internal passages which afford unrestricted flow and prevent clogging due to contaminated air lines. The diaphragm is also an exclusive Deltrol design, assuring instantaneous and complete venting of exhaust air from cylinders, air presses and other air operated equipment.

FEATURES AND BENEFITS
  • Instantaneous dumping of air allows use of smaller valves and piping
  • Increases system efficiency and speeds
  • Cost effective solution
SPECIFICATIONS
Pressure Max psi 125
Pressure Max bar 9
Cv Factor 1.00
Port Size 1/4"
Port Type NPTF
Material Aluminum
Recommended Operating Tempature Range (°F) 0 to +250
Recommended Operating Tempature Range (°C) -18 to +120
  • Operating Pressure range
    • 20 to 125 psi (1.4 to 8.6 bar)
  • Operating Temperature range
    • Buna N (Standard): 0° to +250° F (-18° to +120° C)
    • Viton: 0° to +400° F (-18° to +204° C)
  • Flow rating
    • Inlet Co-Efficient (Cv Factor) = .50 to 5.32
    • Exhaust Co-Efficient (Cv Factor) = 1.0 to 7.84
  • Threads
    • NPTF
  • Materials
    • Body, Bonnet: Die Cast Aluminum
    • O-Ring: Buna-N, Viton
    • Diaphram: Buna-N, Viton
    • Screws: Zinc Plated Steel
