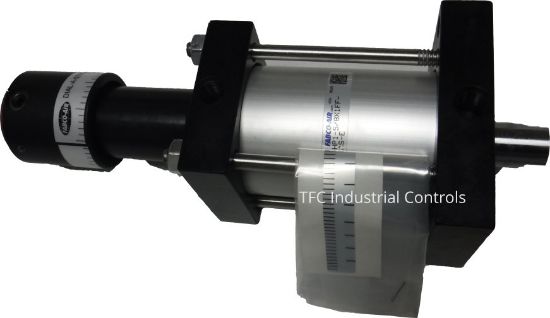

Fabco High Power cylinder HP1-5/8X1FF-AS-E

Fabco HP1-5/8X1FF-AS-E

Manufacturer: Fabco-Air

SKU: FB-HP1-5/8X1FF-AS-E

Manufacturer part number: HP1-5/8X1FF-AS-E

FABCO HP1-5/8X1FF-AS-E

Specifications

Primary brand Fabco-Air
Main function Pneumatic cylinder
Product series / family name Hi-power
Sub-range name HP series
Bore size 1-5/8" (B1-5/8")
Stroke length 1" (S1")
Functions Double-acting pneumatic tie-rod cylinder actuator
Design single rod magnetic piston
Pressure 15psi min. 250psi max.
Shape rectangular
Connection type 3/8-24 UNF-2B female threaded rod-end
2 x 1/8" NPT threaded pneumatic ports
Mounting mode front face mounting with Fabco pattern
Material Aluminium body (hard anodized ID / clear anodized OD)
stainless steel piston rod, Aluminium piston, Buna-N U-cup seals, steel piston bolt
stainless steel tie rods, plated steel nuts, PTFE piston bearing
Duralon rod bearing, pre-lubricated with Magnalube-G grease, black anodized Aluminium rod and cap end heads, black anodized Aluminium cap end plug
anodized Aluminium piston rod bushing
Ambient air temperature for operation -25...+250°F / -32...+121 °C
Application type: Packaging, warehouse and logistics, automotive, printing and converting, medical, electronics and semiconductors, package sealing, water manufacturing, laminate slicing machines, punching, pressing and shearing,
