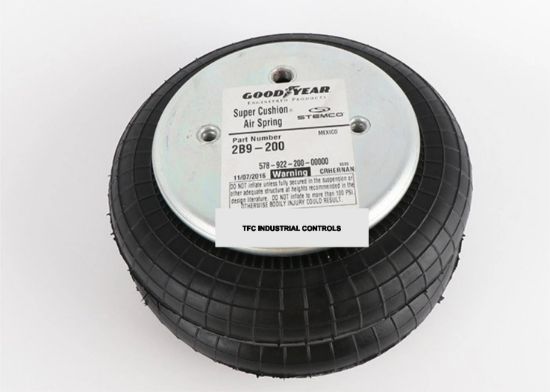

Goodyear 2B9-200 Industrial Air Spring Double Convoluted Bellows

Goodyear Air Spring 2B9-200 Original Rubber Air Spring Double Bellows 578923202 Refer to W01-358-6910

Application of 2B9-200 Goodyear Air Spring:

Air springs are widely used in auto-regulating air suspensions of commercial vehicles, buses, railway vehicles, mechanical equipment and building foundations. Gas springs are also called support rods, angle adjusters, pneumatic rods, shock absorbers, etc. According to the structure and function of the gas spring, there are several types of gas spring, such as free gas spring, self-locking gas spring, and traction. Gas spring, free stop gas spring, swivel chair gas spring, gas rod, shock absorber, etc. This product is widely used in automobile, aviation, medical equipment, furniture, machinery manufacturing and other fields.

About 2B9-200 Goodyear Air Spring:

2B9-200 This air spring is made by Goodyear. Its skin number is 578923202. It is a genuine product produced by a factory in Mexico.
The quality of this air spring is very good. Many customers use it. After using it, it can take several years to replace it.
The Goodyear brand is one of the three major brands in the world, which is well known.
This air spring is most widely used on small and medium trucks.
There are also many customers using it on various shock absorption equipment or lifting equipment.

Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-200

2B9-200 Goodyear Air Spring Cross others OEM

2B9-200 Goodyear Air Spring Technical parameters

❶Nut / Blind Nut

Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
The screw center distance of the top cover plate: 89 mm
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Screw center distance of bottom cover plate: 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 44.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter : 224 mm

The Working Stroke : MIN 75 mm to MAX 260 mm

Maximum Height : 274 mm

Minimum Height :95mm

Stroke Height : 179mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Applications of Goodyear Air Sring 2B9-200:

• Press Manufacturing
• Vibrating Equipment &
Conveyers
• Shaker Screens
• Steel Manufacturing
Equipment
• Automotive Related
(Plate Glass)
• Material Handling Industry
• Lumber Industry
• Aluminum Can Recycling
• Container Manufacturers
• Paper Industry
