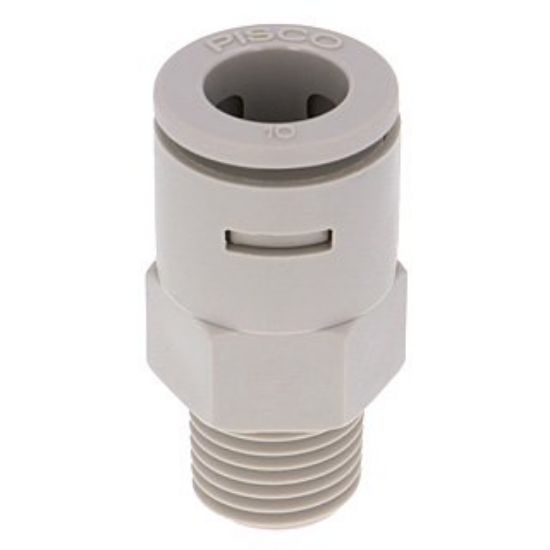

Pisco APC10-02 PPS (Chemical)

Pisco APC10-02 PPS (Chemical)
Manufacturer: Pisco
SKU: PS-APC10-02
Manufacturer part number: APC10-02

Pisco APC10-02 PPS (Chemical)

Size
Tube outer diameter (φD): 10mm
screw size (R): R1/4

Features
● The main body material adopts PPS with excellent heat resistance, flame retardant (UL94 V-0 equivalent), and chemical resistance. Fluorine rubber is used as the sealing material.
- Because the attachment and detachment of the tube is one-touch type, installation is easy.
- Because it is made of all resin, there is no need to worry about rust and metal ions.
● Conforms to the Food Sanitation Act. In addition, since it is an oil-free specification, it is ideal for food-related products.
- Weight is about 1/3 of the standard fitting, about 1/5 of sus316 tightening fittings and lightweight.

Specifications
● Fluid used: air, water (with conditions), others (conditional)
● Maximum working pressure: 0.9 MPa (at 0 to 20 °C)
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 80 °C (without freezing)
* When the fluid used is water or other chemicals, be sure to observe the following conditions.
1. When using water or liquid, keep the surge pressure below the maximum operating pressure.
2. Be sure to use an insert ring when using water or liquid.
3. For chemicals, mixed gas, etc., please use after confirming that the compliance with our specifications may differ depending on the usage conditions.

Material
● Resin body: PPS GF30%
●Seal rubber: FKM

Mass

6.4g
