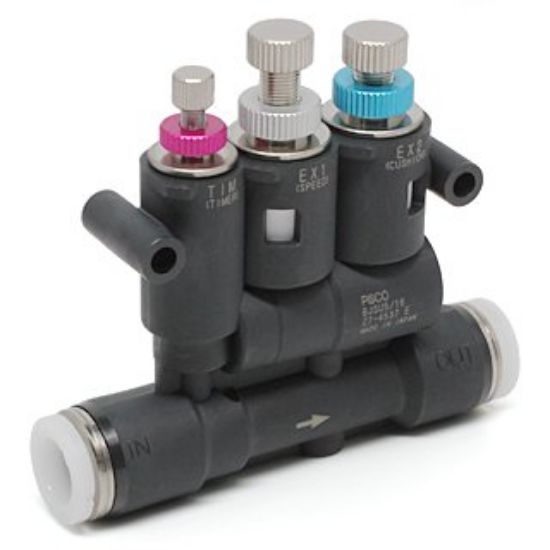

Pisco BJSU3/8 Shock Absorber Flow Control

Pisco BJSU3/8 Shock Absorber Flow Control
Manufacturer: Pisco
SKU: PS-BJSU3/8
Manufacturer part number: BJSU3/8

Pisco BJSU3/8 Shock Absorber Flow Control

Control direction
Meter out control

Size
Tube outer diameter (φD): 3/8

Applicable cylinder tube inner diameter
Max.φ50mm

Features
●Industry's first! The same control as a cylinder with shock absorber is possible. (Patent No. 5578502)
● Shock absorber unnecessary: Two-step adjustment of exhaust flow rate is realized. The second stage can be used for cushioning for the same control as the shock absorber.
-Speed adjustment (EX1), strength of cushion (EX2), cushion timing (TIM) can be adjusted respectively.
- Achieves more than three times the durability of general shock absorbers. It is possible to reduce the number of maintenance and costs.

Specifications
●Fluid used: Air
●Operating pressure range: 0.2 to 1.0 MPa
●Operating temperature range: 0 to 60°C (without freezing)

Material
- Resin body: PBT
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

80g
