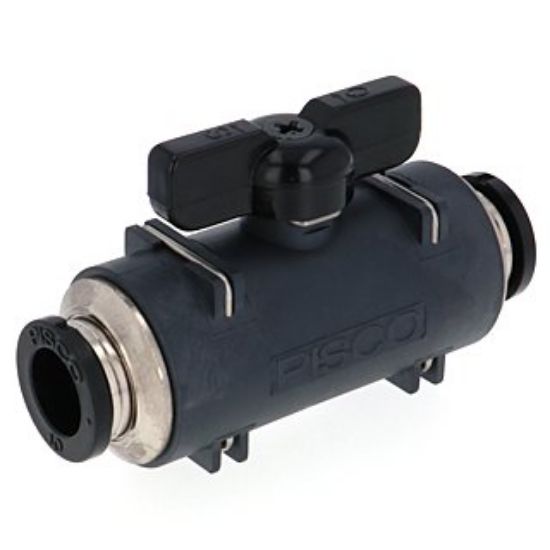

Pisco BVU60-1010 Ball Valve

Pisco BVU60-1010 Ball Valve
Manufacturer: Pisco
SKU: PS-BVU60-1010
Manufacturer part number: BVU60-1010

Pisco BVU60-1010 Ball Valve

Size
Tube outer diameter (φD): 10 mm

Features
● Opening and closing the pneumatic input to the equipment.
- It is also possible to shed water.

Specifications
● Fluid used: Air, water (conditional)
● Maximum working pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (without freezing)
※ When the used fluid is water, Be sure to observe the following conditions:
1. When using water, keep the surge pressure below the maximum operating pressure.
2. General tap water can be used. For other water use, please contact us.
3. Be sure to use an insert ring when using water.

Material
● Resin body: PPS GF30%
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

104g
