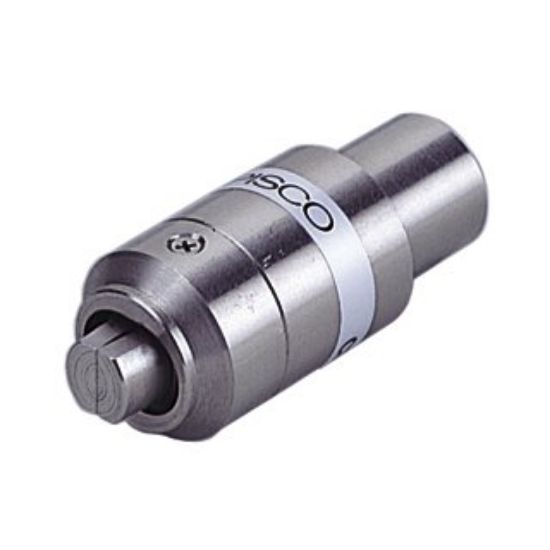

Pisco CHM08BA02H Miniature Grippers

Pisco CHM08BA02H Miniature Grippers
Manufacturer: Pisco
SKU: PS-CHM08BA02H
Manufacturer part number: CHM08BA02H

Pisco CHM08BA02H Miniature Grippers

Size
Cylinder diameter: φ8mm
Connection diameter: M5×0.8

Chuck tsume shape
for circular hole shaped workpieces (workpiece dimensions: holes φ2 to φ3 mm)

Features
Lightweight, ultra-compact stainless steel open chuck.
- Simple shape products can have work directly without the need for a dedicated tsume.
- By work stopper, stable chucking is possible.

Specifications
● Moment (when 0.5MPa chuck parallel) (moment of chuck tip with shaft as fulcrum): 0.08 N · m
● Operating pressure range: 0.2 to 0.7 MPa
● Operating temperature range: 0 to 60 °C (without freezing)
- Refueling: Unnecessary


Material
● Body: stainless steel
● Seal rubber: NBR

Mass

18g
