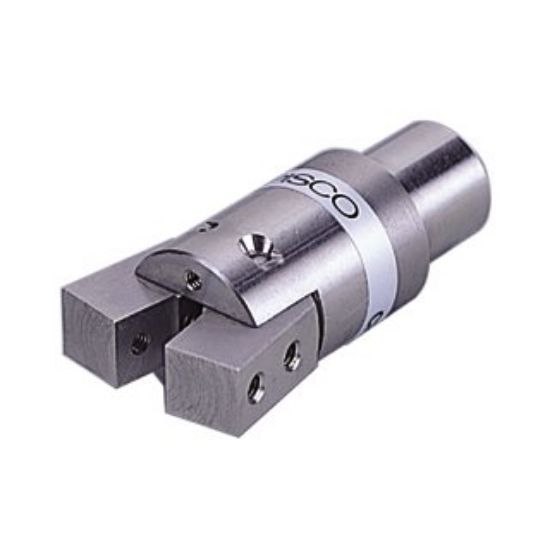

Pisco CHM11AAS Miniature Grippers

Pisco CHM11AAS Miniature Grippers
Manufacturer: Pisco
SKU: PS-CHM11AAS
Manufacturer part number: CHM11AAS

Pisco CHM11AAS Miniature Grippers

Size
Cylinder diameter: φ11mm
Connection diameter: M5×0.8

Chuck tsume shape
2 screws mounting system

Features
- Lightweight, ultra-small stainless steel closing chuck.
- By work stopper, stable chucking is possible.

Specifications
● Moment (0.5MPa chuck parallel) (moment of chuck tip with shaft as fulcrum): 0.20 N · m
● Operating pressure range: 0.2 to 0.7 MPa
● Operating temperature range: 0 to 60 °C (without freezing)
- Refueling: Unnecessary

Material
● Body: stainless steel
● Seal rubber: NBR

Mass

43g
