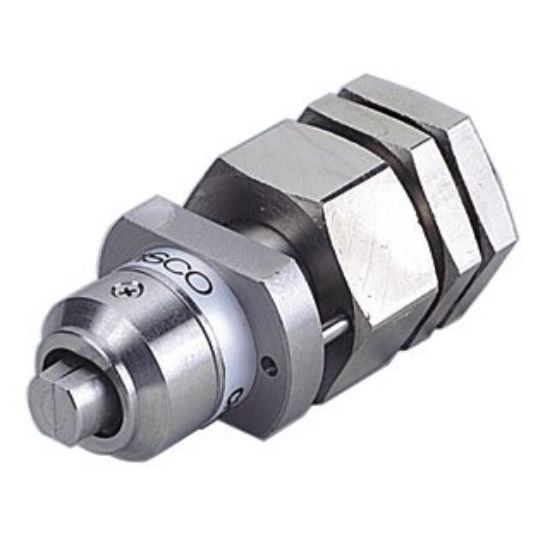

Pisco CHM11BC12C Miniature Grippers

Pisco CHM11BC12C Miniature Grippers
Manufacturer: Pisco
SKU: PS-CHM11BC12C
Manufacturer part number: CHM11BC12C
$127.27 Call to Order

Pisco CHM11BC12C Miniature Grippers

Size
cylinder diameter: φ11mm
Connection diameter: M5×0.8

Chuck tsume shape
for mizo-shaped workpieces (workpiece dimensions: Mizo width 12 to 14 mm)

Features
● Lightweight, ultra-compact stainless steel open chuck.
- Simple shape products can have work directly without the need for a dedicated tsume.
- By work stopper, stable chucking is possible.
- With floating, work stopper can be used more effectively, also prevents damage due to thrusting.

Specifications
● Moment (0.5MPa chuck parallel) (moment of chuck tip with shaft as fulcrum): 0.20 N · m
● Operating pressure range: 0.2 to 0.7 MPa
● Operating temperature range: 0 to 60 °C (without freezing)
- Refueling: Unnecessary

Material
● Body: stainless steel
● Seal rubber: NBR

Mass

102g
