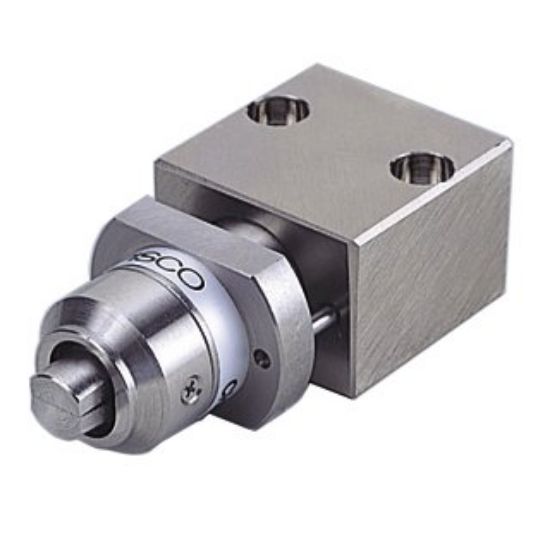

Pisco CHM11BF08H Miniature Grippers

Pisco CHM11BF08H Miniature Grippers
Manufacturer: Pisco
SKU: PS-CHM11BF08H
Manufacturer part number: CHM11BF08H
$138.18 Call to Order

Pisco CHM11BF08H Miniature Grippers

Size
Cylinder diameter: φ11mm
Connection diameter: M5×0.8

Chuck tsume shape
for circular hole shaped workpieces (workpiece dimensions: hole φ8 to φ10 mm)

Features
● Lightweight, ultra-compact stainless steel open chuck.
- Simple shape products can have work directly without the need for a dedicated tsume.
- By work stopper, stable chucking is possible.
- With floating, work stopper can be used more effectively, also prevents damage due to thrusting.

Specifications
● Moment (0.5MPa chuck parallel) (moment of chuck tip with shaft as fulcrum): 0.20 N · m
● Operating pressure range: 0.2 to 0.7 MPa
● Operating temperature range: 0 to 60 °C (without freezing)
- Refueling: Unnecessary

Material
● Body: stainless steel
● Seal rubber: NBR

Mass

113g
