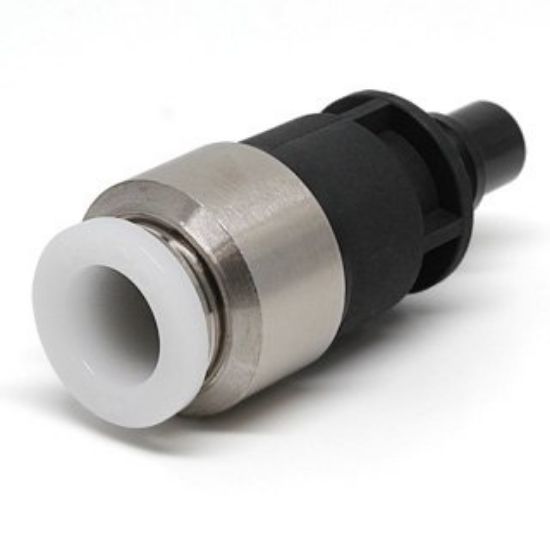

Pisco CPP15-3/8B Coupling

Pisco CPP15-3/8B Coupling

Size
Tube outer diameter (φD): 3/8
Compatible socket type: CPS15-□

Features
● Compact, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

32g
