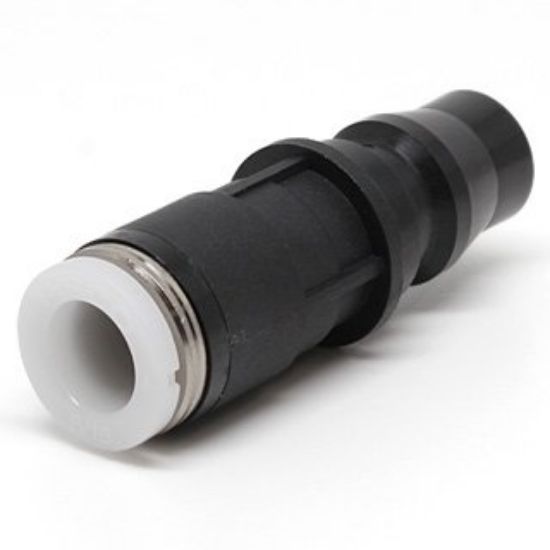

Pisco CPP20-5/16CB Coupling

Pisco CPP20-5/16CB Coupling
Manufacturer: Pisco
SKU: PS-CPP20-5/16CB
Manufacturer part number: CPP20-5/16CB

Pisco CPP20-5/16CB Coupling

Size
Tube outer diameter (φD): 5/16
Compatible socket format: CPS20-□

Features
● Compact, lightweight and one-handed coupling. Compatible with other couplings.
- Ideal for parts that frequently attach and detach air piping.
- Check valve built-in type that does not flow residual pressure.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

8.9g
