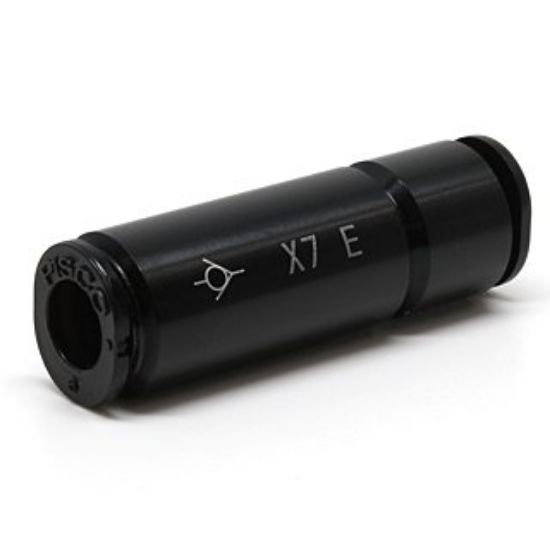

Pisco CVU6-6 Check Valve

Pisco CVU6-6 Check Valve

Size
Tube outer diameter (φD): 6 mm

Features
● Since only air input from one side flows, it is possible to keep the pressure on the output side.
● Can also be used for vacuum retention and piping at low pressure.

Specifications
● Fluid used: Air
● Maximum working pressure: 0.9 MPa
●Vacuum pressure: -100 kPa
● Minimum operating differential pressure: 0.01 MPa or less (differential pressure that begins to conduct to the secondary side when air is applied from the free flow direction)
● Operating temperature range: 0 to 60 ° C. (no freezing)
● Minimum check-in pressure: 0.02 MPa
※ Check valve allows leakage, so please do not use it in usage that requires zero leakage amount.

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR
●Valve body: Aluminum

Mass

10g
