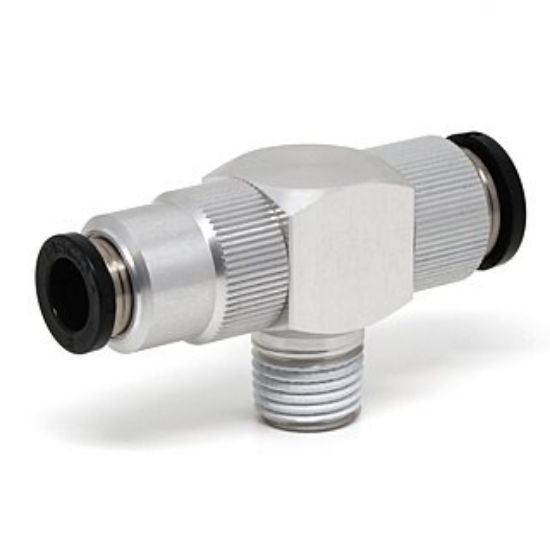

Pisco EQ02-C08P02C10 Quick Exhaust Valve

Pisco EQ02-C08P02C10 Quick Exhaust Valve
Manufacturer: Pisco
SKU: PS-EQ02-C08P02C10
Manufacturer part number: EQ02-C08P02C10

Pisco EQ02-C08P02C10 Quick Exhaust Valve

Size
Tube outer diameter (input port) (φD1): 8mm
screw size (output port) (R): R1/4
tube outer diameter (exhaust port) (φD2): 10 mm

Features
● Supports high-speed drive of cylinders.

Specifications
●Fluid used: Air
●Operating pressure range: 0.1 to 0.7 MPa
●Operating temperature range: 5 to 60°C (without freezing)
●Minimum working pressure: 0.05 MPa

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

33g
