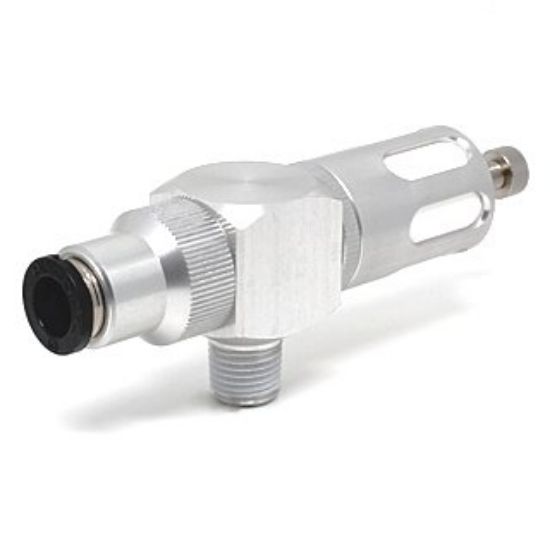

Pisco EQ03-C10P02E Quick Exhaust Valve

Pisco EQ03-C10P02E Quick Exhaust Valve

Size
Tube outer diameter (input port) (φD): 10 mm
screw size (output port) (R): R1/4

Features
● Supports high-speed drive of cylinders.
- Since the exhaust port has a aperture function, it is possible to control the high-speed drive of the cylinder.
- Built-in silencer, reduce exhaust sound. : The silencer element can be replaced while the slide valve is fixed, so there is no need to adjust the aperture again.

Specifications
●Fluid used: Air
●Operating pressure range: 0.1 to 0.7 MPa
●Operating temperature range: 5 to 60°C (without freezing)
●Minimum working pressure: 0.05 MPa

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

97g
