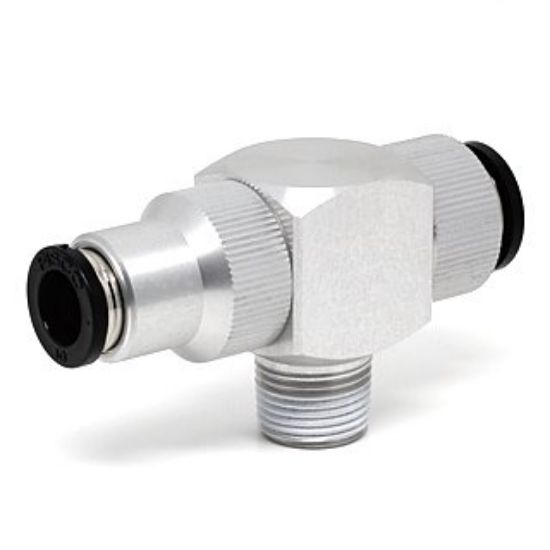

Pisco EQ03-C10P03C12 Quick Exhaust Valve

Pisco EQ03-C10P03C12 Quick Exhaust Valve

Size
Tube outer diameter (input port) (φD1): 10 mm
screw size (output port) (R): R3/8
tube outer diameter (exhaust port) (φD2): 12mm

Features
● Supports high-speed drive of cylinders.

Specifications
●Fluid used: Air
●Operating pressure range: 0.1 to 0.7 MPa
●Operating temperature range: 5 to 60°C (without freezing)
●Minimum working pressure: 0.05 MPa

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR, HNBR

Mass

72g
