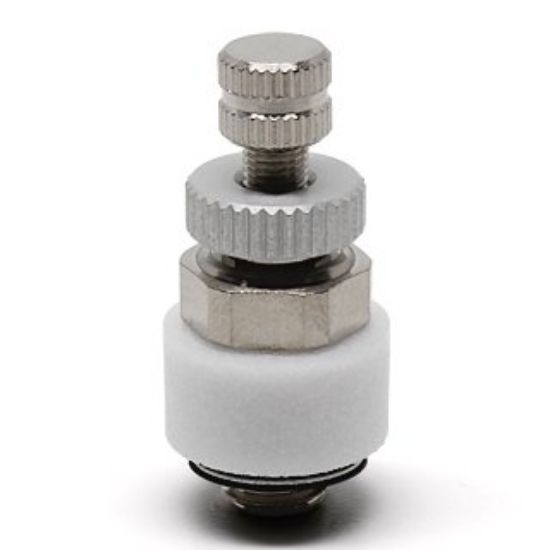

Pisco ETM5 Exhaust Needle

Pisco ETM5 Exhaust Needle
Manufacturer: Pisco
SKU: PS-ETM5
Manufacturer part number: ETM5

Pisco ETM5 Exhaust Needle

Size
Screw size (M): M5×0.8

Features
● Control exhaust flow rate.
- Used directly attached to the solenoid valve. : Ideal when there is no space to install a speed controller on a cylinder, etc., or when the area around the cylinder etc. is narrow and it is difficult to adjust the needle. (Note: Please install so that the distance from the cylinder is not too far away.) ● Compared
to the speed controller, the exhaust flow rate is controlled at a lower cost.

Specifications
● Fluid used: Air
● Operating pressure range: 0 to 0.9 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
- Metal body: brass + electroless nickel plating
● Element: PE

Mass

4.6g
