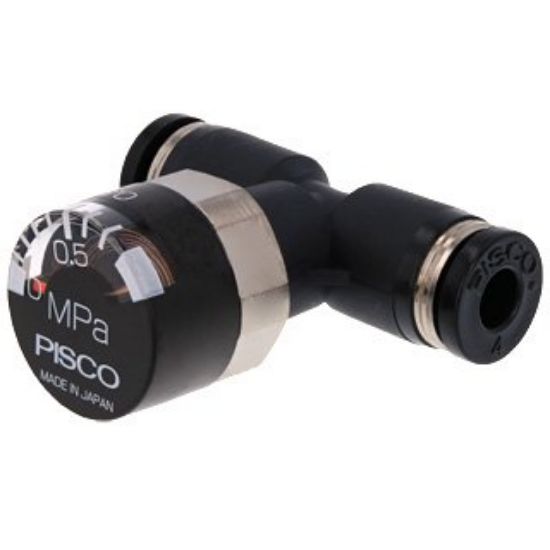

Pisco GPU4-4 Gauge

Pisco GPU4-4 Gauge
Manufacturer: Pisco
SKU: PS-GPU4-4
Manufacturer part number: GPU4-4

Pisco GPU4-4 Gauge

Size
Tube outer diameter (φD): 4mm

Features
● The main body is compact and can be mounted in a small space.
- One-touch fitting built-in type displays the pressure just by connecting the tube.

Specifications
● Fluid used: Air
● Display pressure range: 0 to 0.8 MPa
● Accuracy: ±5% (full scale)
● Operating temperature range: 0 to 60? C (frozen)
● Scale angle: 150?

Material
● Cap: Acrylic
● Metal body: Brass + nickel plating
● Resin body: PBT
● Open ring: POM

Mass

13g
