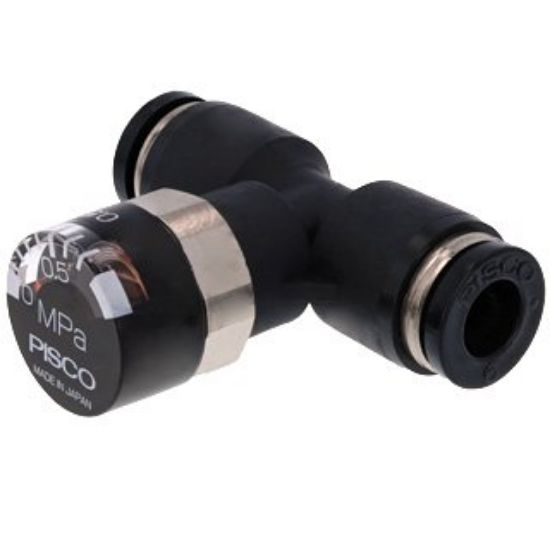

Pisco GPU6-6 Gauge

Pisco GPU6-6 Gauge
Manufacturer: Pisco
SKU: PS-GPU6-6
Manufacturer part number: GPU6-6

Pisco GPU6-6 Gauge

Size
Tube outer diameter (φD): 6mm

Features
● The main body is compact and can be mounted in a small space.
- One-touch fitting built-in type displays the pressure just by connecting the tube.

Specifications
● Fluid used: Air
● Display pressure range: 0 to 0.8 MPa
● Accuracy: ±5% (full scale)
● Operating temperature range: 0 to 60? C (frozen)
● Scale angle: 150?

Material
● Cap: Acrylic
● Metal body: Brass + nickel plating
● Resin body: PBT
● Open ring: POM

Mass

16g
