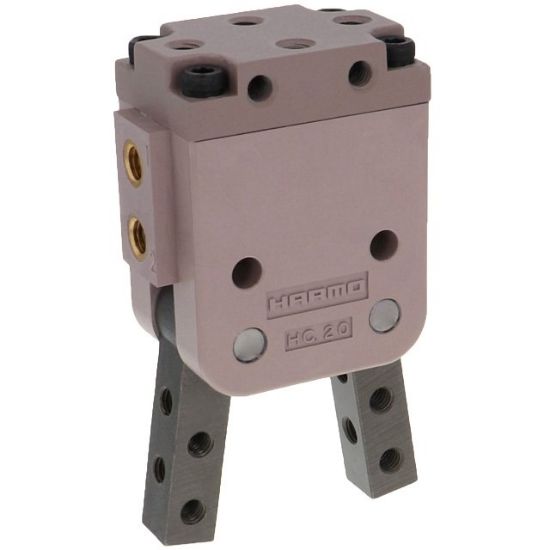

Pisco HC20CP Grippers

Pisco HC20CP Grippers

Size
Cylinder cross-sectional area: 4.3 cm²

Features
● Compact elliptical cylinder realizes space saving, weight reduction, and high cycle.
- Plastic type that realized weight reduction.

Specifications
● Operating method: Double acting type / Single acting type
● Fluid used: compressed air (no refueling)
● Operating pressure range: 0.2 to 0.6 MPa
● Operating temperature range: -10 to 60 °C (but use in a non-frozen state)
- Repetition accuracy: ± 0.1mm (however, midpoint of the tsume)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: PA
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
105g
