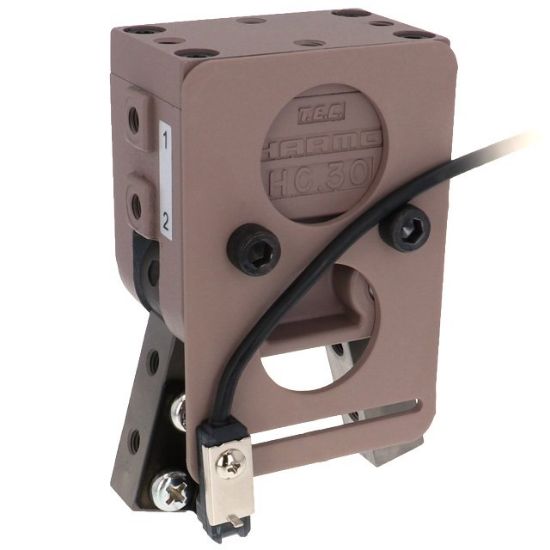

Pisco HC30AD-S Grippers

Pisco HC30AD-S Grippers
Manufacturer: Pisco
SKU: PS-HC30AD-S
Manufacturer part number: HC30AD-S
$360.00 Call to Order

Pisco HC30AD-S Grippers

Size
Cylinder cross-sectional area: 8 .8cm²

Features
● Compact elliptical cylinder realizes space saving, weight reduction, and high cycle.
- Die-cast type with excellent durability.
● The sensor type can be operated and clamped at a glance by flashing the LED. (Since the proximity switch slides sideways, it can be adjusted according to the workpiece.)

Specifications
● Actuation method: Double acting type / Single acting type
● Fluid used: Compressed air (no refueling)
● Operating pressure range: 0.2 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (but use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the plum)
● Maximum frequency of use: 100 C.P .M.

Material
● Body: Zinc die-cast
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
518g
