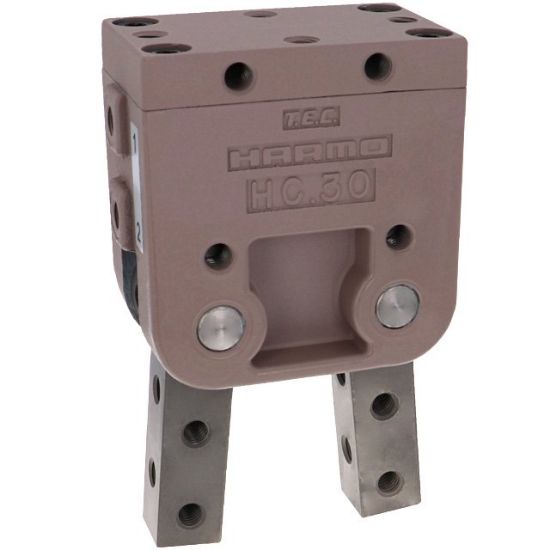

Pisco HC30CD Grippers

Pisco HC30CD Grippers

Size
Cylinder cross-sectional area: 8 .8cm²

Features
● Compact elliptical cylinder realizes space saving, weight reduction, and high cycle.
- Die-cast type with excellent durability.

Specifications
● Operating method: Double acting type / Single acting type
● Use fluid: Compressed air (no refueling)
● Operating pressure range: 0.2 to 0.7 MPa
●Operating temperature range: -10 to 60 °C (however, use in a non-frozen state)
- Repeat accuracy: ±0.1mm (however, midpoint of the plum
● Maximum frequency of use: 100 C.P. .M.

Material
● Body: Zinc die-cast
● Tsume: Chromium molybdenum
● Piston: POM
- Seal rubber: NBR

Mass
450g
