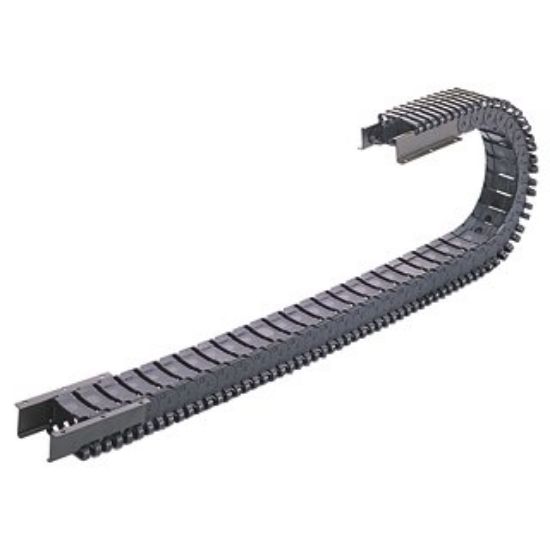

Pisco HPC100 Cable Chains

Pisco HPC100 Cable Chains

Size
Appearance dimensions (height × width): 37×69mm
Storage part dimensions (height × width): 30×40mm
Maximum cable / Hose outer diameter: 24mm
Pitch: 25mm
Number of links (/m): 40

Minimum bending radius
90mm

Flap opening and closing method
Central cutting type

Features
● Low noise is realized by adopting a fine block configuration and special engineering plastic.
- Flap split from the center into two pieces, push the cable in, add it by simply pulling, can be taken out.

Specifications
● Operating temperature range: 0 to 50 °C
● Operating environment conditions: In the atmosphere of acid and alkali, please avoid hot water.
● Maximum free span: 1m
● Maximum movement stroke: 1 .8m
● Maximum cable hose weight: 5 kg / m
● Maximum movement speed: 2.5 m / s

Mass
0.608 kg / m

Material
●PA6
