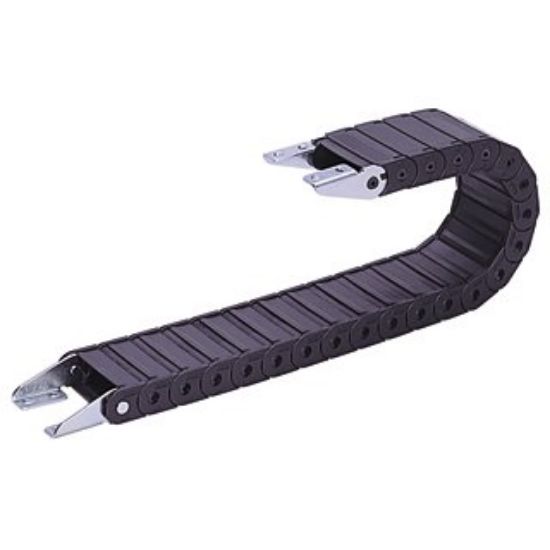

Pisco HPM204-R28 Cable Chains

Pisco HPM204-R28 Cable Chains

Size
Appearance dimensions (height × width): 23×35.5mm
Storage dimensions (height × width): 18×25 mm
Maximum cable hose outer diameter: 14 mm
Pitch: 15 mm
Number of links (/m): 67

Minimum bending radius
28mm

Flap opening and closing method
Fixed (full cover type)

Features
● Full cover type that dust, dust, etc. are difficult to enter inside.
- Simple appearance at low cost.
- Ideal for cable guides of dedicated machines to be mass-produced.

Specifications
● Operating temperature range: -10 to 80 °C
● Operating environment conditions: Please avoid hot water in the atmosphere of acid and alkali.
● Maximum free span: 1m
●Maximum movement stroke: 1.8m
●Maximum cable hose weight: 3kg/m
●Maximum travel speed: 2.5m/s

Mass
0.34kg/m

Material
●PA6 GF20%
