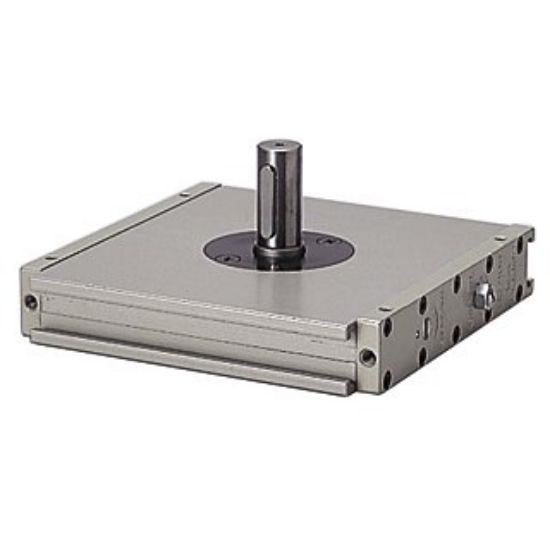

Pisco HR200-90 Rotary Actuator

Pisco HR200-90 Rotary Actuator

Size
Cylinder cross-sectional area: 6.9 cm²

Features
● Ultra-thin and high power are realized by a compact elliptical cylinder.
● Removes backlash. It has the ability to fine-tune the angle, adjust the air cushion, and adjust the rack pinion.
- The back side is flat and very convenient for layout.

Specifications
● Operation method: Double acting type (rack pinion method)
● Fluid used: Compressed air (no refueling)
● Operating pressure range: 0.3 to 0.8 MPa
●Operating temperature range: 5 to 60 °C
- Angle adjustment range: 0 to +5°
● Cushion: Air cushion method
● Rotation angle: 90°

Material
● Body: Aluminum
● Piston: POM
● Seal rubber: NBR

Mass
400g
