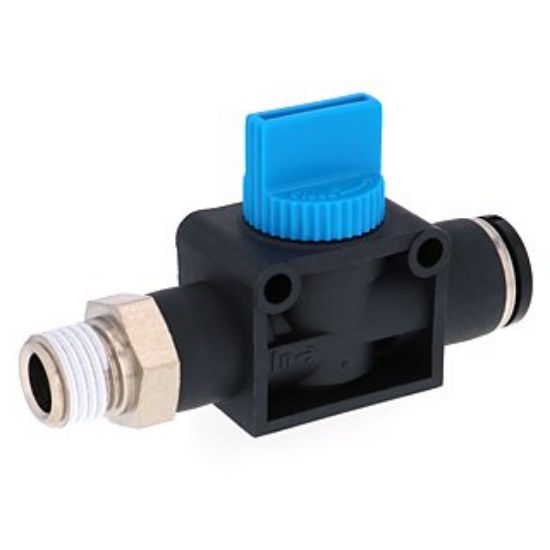

Pisco HV02-10 Hand Valve

Pisco HV02-10 Hand Valve
Manufacturer: Pisco
SKU: PS-HV02-10
Manufacturer part number: HV02-10

Pisco HV02-10 Hand Valve

Size
Screw size (IN) (R): R1/4
Tube outer diameter (OUT) (φD): 10 mm

Features
● Open and close the pneumatic input to the equipment.
● When frequently maintaining equipment on the output side, a three-way valve that can release residual pressure on the output side (secondary side) is recommended.
- Two-way valve without exhaust function is also available.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)


Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

62g
