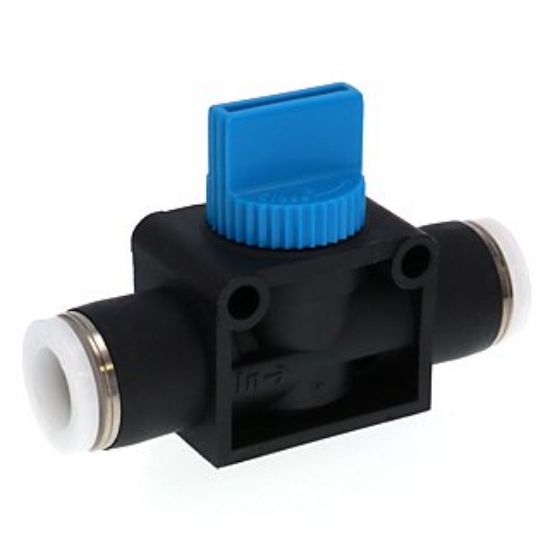

Pisco HV3/8-3/8 Hand Valve

Pisco HV3/8-3/8 Hand Valve

Size
Tube Outer Diameter (IN) (φD1): 3/8
Tube Outer Diameter (OUT) (φD2): 3/8

Features
● Opening and closing pneumatic input to equipment.
● When frequently maintaining equipment on the output side, a three-way valve that can release residual pressure on the output side (secondary side) is recommended.
- Two-way valve without exhaust function is also available.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

45g
