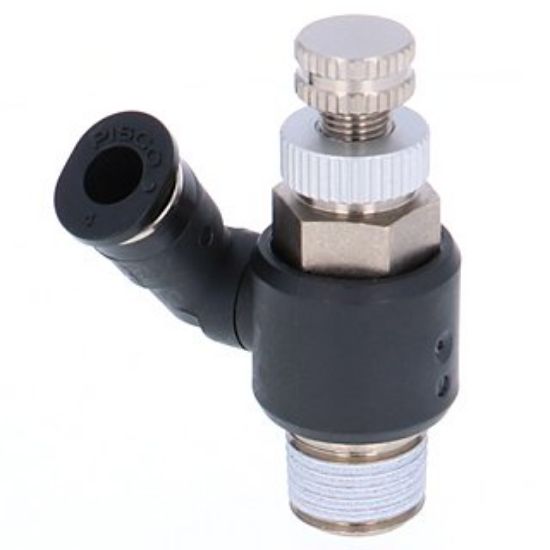

Pisco JNS4-01 Needle Valve

Pisco JNS4-01 Needle Valve
Manufacturer: Pisco
SKU: PS-JNS4-01
Manufacturer part number: JNS4-01

Pisco JNS4-01 Needle Valve

Size
Tube outer diameter (φD): 4mm
screw size (R): R1/8

Features
● Control the speed and air pressure signal of pneumatic equipment. Flow rate control while air is flowing is possible.
● The tube can be taken out freely. : For the free type, the joint part and the resin body rotate.

Specifications
●Fluid used: Air
●Maximum operating pressure: 0.9MPa
●Vacuum pressure used: -100kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

19g
