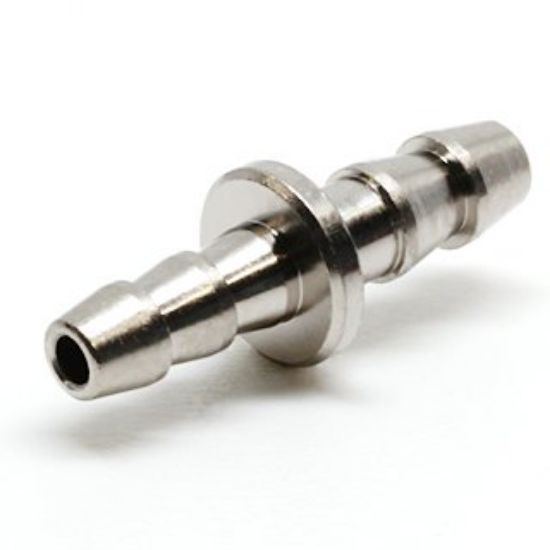

Pisco LG-0425-0320 Minimal Barb

Pisco LG-0425-0320 Minimal Barb
Manufacturer: Pisco
SKU: PS-LG-0425-0320
Manufacturer part number: LG-0425-0320

Pisco LG-0425-0320 Minimal Barb

Size
Tube inner diameter (φD1): 2.5 mm
Tube inner diameter (φD2): 2mm

Features
● Barb fitting ideal for space-saving piping. In combination with our vacuum tube (UD), it is also ideal for piping vacuum equipment.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.5 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 50 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating

Mass

0.6g
