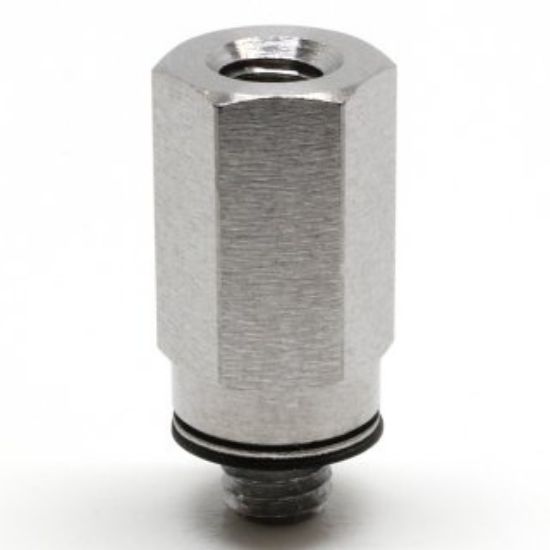

Pisco LLC-FM3-M3 Minimal Barb

Pisco LLC-FM3-M3 Minimal Barb
Manufacturer: Pisco
SKU: PS-LLC-FM3-M3
Manufacturer part number: LLC-FM3-M3

Pisco LLC-FM3-M3 Minimal Barb

Size
Screw size (M1): M3×0.5
Female thread size (M2): M3×0.5

Features
● Barb fitting ideal for space-saving piping. In combination with our vacuum tube (UD), it is also ideal for piping vacuum equipment.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 50 °C (without freezing)

Material
● Metal body: stainless steel or comfortable cutting steel + electroless nickel plating

Mass

1.6g
