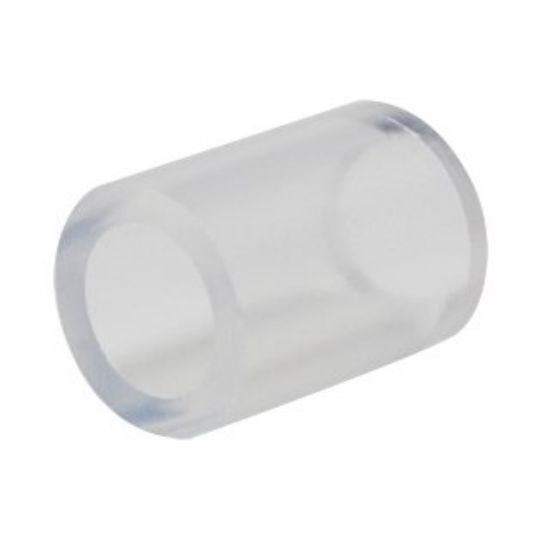

Pisco LS-0425 Minimal Barb

Pisco LS-0425 Minimal Barb

Size
Application tube outer diameter (φD): 4mm

Features
● Barb fitting ideal for space-saving piping. In combination with our vacuum tube (UD), it is also ideal for piping vacuum equipment.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.5 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 50 °C (without freezing)

Material
●PFA

Mass

0.3g
