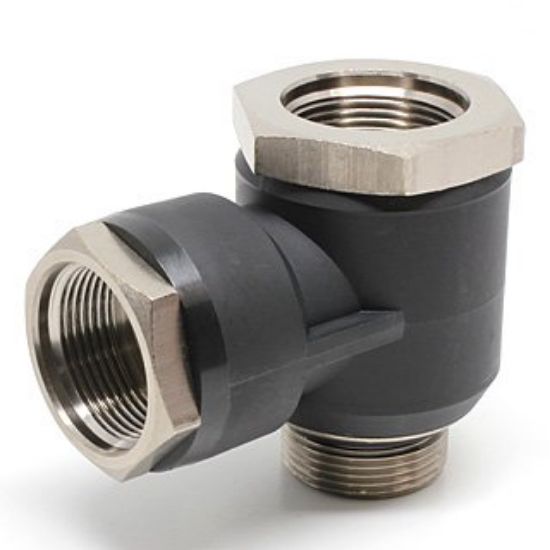

Pisco MHS1818 Main Block

Pisco MHS1818 Main Block
Manufacturer: Pisco
SKU: PS-MHS1818
Manufacturer part number: MHS1818

Pisco MHS1818 Main Block

Parts for air outlet expansion

Size
assembly screw size (M1): M18×1
Assembly screw size (M2): M18×1

Features
● Manifold for combination-free centralized distribution.
● The same flow rate as steel pipe piping is secured. Moreover, the appearance dimensions are about half that of steel pipes.
- It is possible to freely combine 14 types of different shapes.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa (0.9MPa when using coupling module: QMC20)
●Vacuum pressure used: -100kPa
- Operating temperature range: 0 to 60 °C (non-freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
● Seal rubber: NBR

Mass

86g
