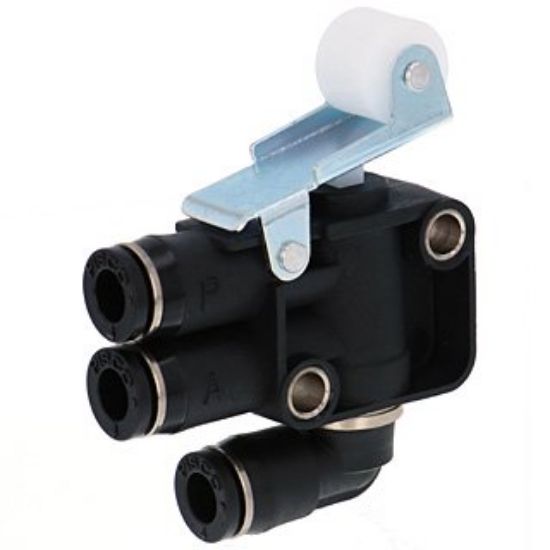

Pisco MVM43-RJ Mechanical Valve

Pisco MVM43-RJ Mechanical Valve
Manufacturer: Pisco
SKU: PS-MVM43-RJ
Manufacturer part number: MVM43-RJ

Pisco MVM43-RJ Mechanical Valve

Size
Tube outer diameter (φD): 4mm

Features
● Push type pneumatic input opening and closing valve.
● Operability is not affected by pressure due to the spool valve mechanism.
- 3-way valve type exhausts the residual pressure on the output side at the time of closure.

Specifications
●Fluid used: Air
●Operating pressure range: 0 to 0.7 MPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Refueling: ISO VG32 (turbine oil 1 type)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

13g
