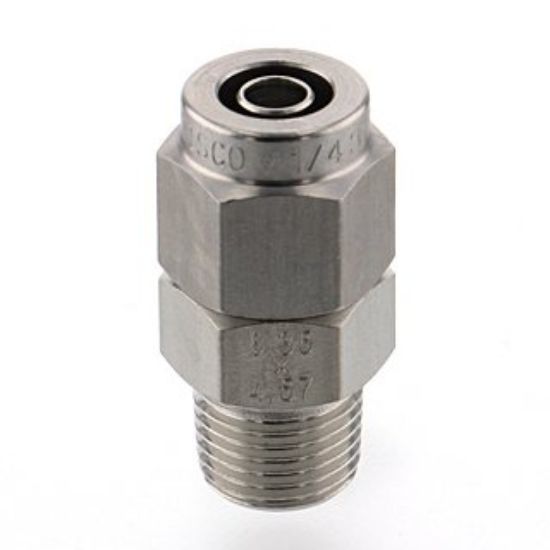

Pisco NSC1/4-01 Sus316 Compression

Pisco NSC1/4-01 Sus316 Compression
Manufacturer: Pisco
SKU: PS-NSC1/4-01
Manufacturer part number: NSC1/4-01

Pisco NSC1/4-01 Sus316 Compression

Size
Tube outer diameter × inner diameter (φD): 6.35 ×4.57 mm
screw size (R): R1/8

Features
● Tightening fitting using SUS316 excellent in corrosion resistance. (Rubber material not used)
● Ideal for piping in special environments in markets (medical, semiconductor, solar cells, secondary batteries, food-related) that emphasize airtightness, including chemicals.
● After cleaning with clean air, packaging in a clean room (equivalent to ISO class 6).

Specifications
● Fluid used: air, water, others (subject to conditions)
● Maximum working pressure: According to the maximum working pressure of the tube.
● Vacuum pressure used: -100 kPa
● Operating temperature range: Varies depending on the specification range of the tube. (Non-freezing)
※ For chemicals, mixed gas, etc., please use after confirming that the compliance with our specifications may differ depending on the usage conditions.

Material
● Metal body: SUS316

Mass

15g
