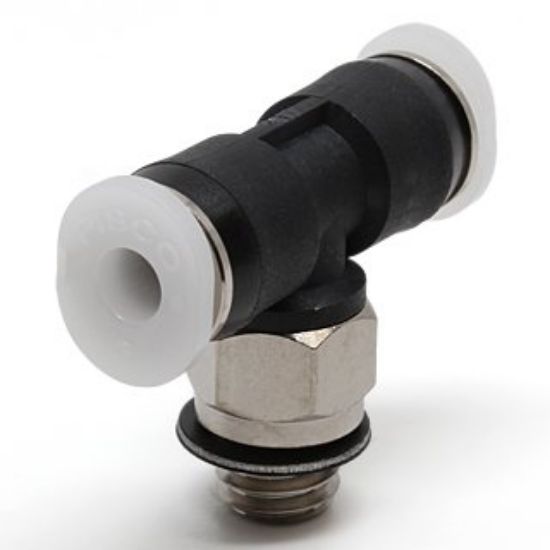

Pisco PB1/8-M6M Mini Fitting

Pisco PB1/8-M6M Mini Fitting
Manufacturer: Pisco
SKU: PS-PB1/8-M6M
Manufacturer part number: PB1/8-M6M

Pisco PB1/8-M6M Mini Fitting

Size
Tube outer diameter (φD): 1/8
screw size (M): M6×1

Features
● Compared to the standard type, it succeeded in miniaturization of 40% compared to the capacity.
- Easy to attach and detach the tube even if it is ultra-small. : The open ring adopts an elliptical shape.
-One-touch fittings for ultra-fine tube piping are available. : φ1.8, φ2mm size is ideal for piping to small actuators, etc.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR

Mass

4.7g
