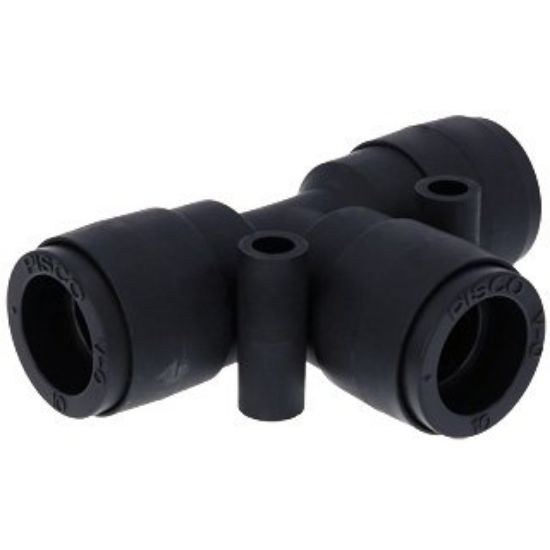

Pisco PE10V-0 Fitting Anti Spatter

Pisco PE10V-0 Fitting Anti Spatter
Manufacturer: Pisco
SKU: PS-PE10V-0
Manufacturer part number: PE10V-0

Pisco PE10V-0 Fitting Anti Spatter

Size
Tube outer diameter (φD): 10 mm

Features
● Uses flame retardant resin (V-0 equivalent product) with excellent sputter resistance. With open ring cover, it prevents malfunction of the opening ring due to sputtering.

Specifications
● Fluid used: Air, water (conditional)
● Maximum working pressure: 0.9 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (without freezing)
※ When the used fluid is water, Be sure to observe the following conditions:
1. When using water, keep the surge pressure below the maximum operating pressure.
2. Be sure to use an insert ring when using water.

Material
● Resin body: Flame retardant resin
●Seal rubber: NBR

Mass

27g
