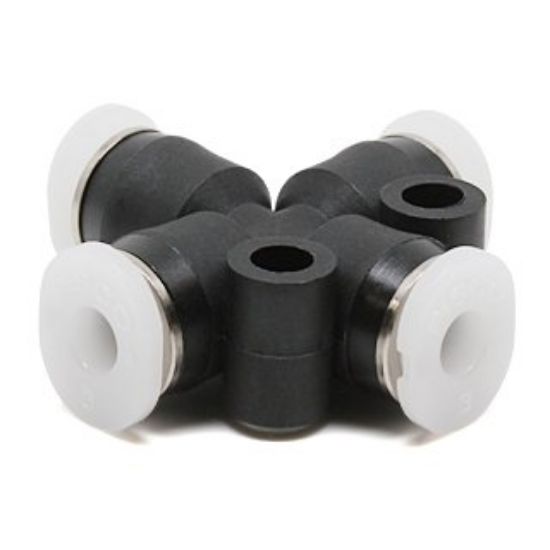

Pisco PZA1/8M Mini Fitting

Pisco PZA1/8M Mini Fitting
Manufacturer: Pisco
SKU: PS-PZA1/8M
Manufacturer part number: PZA1/8M

Pisco PZA1/8M Mini Fitting

Size

Tube outer diameter (φD): 1/8

Features
● Succeeded in miniaturization of 40% of capacity compared to standard type.
- Easy to attach and detach the tube even if it is ultra-small. : The open ring adopts an elliptical shape.
-One-touch fittings for ultra-fine tube piping are available. : φ1.8, φ2mm size is ideal for piping to small actuators, etc.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

4.5g
