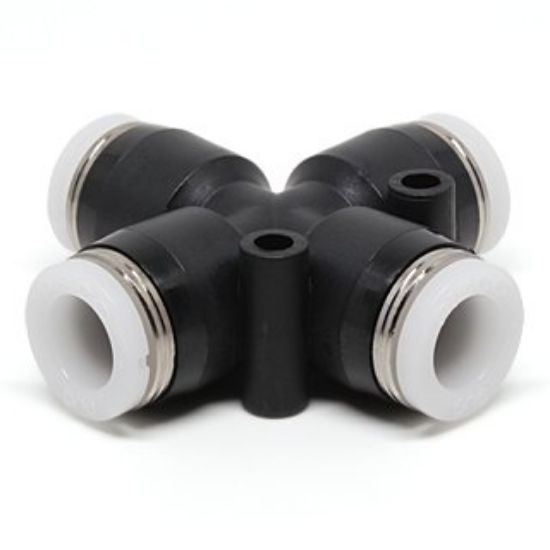

Pisco PZA5/16 Standard Fitting

Pisco PZA5/16 Standard Fitting
Manufacturer: Pisco
SKU: PS-PZA5/16
Manufacturer part number: PZA5/16

Pisco PZA5/16 Standard Fitting

Size
Tube outer diameter (φD): 5/16

Features
● One-touch fittings for all piping with a rich lineup. Water can also be used depending on the conditions.
● High performance and high quality: Lock claw grips evenly around the tube. Even after many years, it feels like a new one.
The uniquely shaped elastic body sleeve shuts out air leakage.

Specifications
● Fluid used: Air, water (conditioned)
● Maximum working pressure: 1.0 MPa
● Vacuum pressure used: -100 kPa
● Operating temperature range: 0 to 60 °C (without freezing)
※ When the used fluid is water Be sure to observe the following conditions:
1. When using water, keep the surge pressure below the maximum operating pressure.
2. General tap water can be used. For other water use, please contact us.
3. Be sure to use an insert ring when using water.

Material
● Resin body: PBT
● Open ring: POM
● Seal rubber: NBR

Mass

20g
