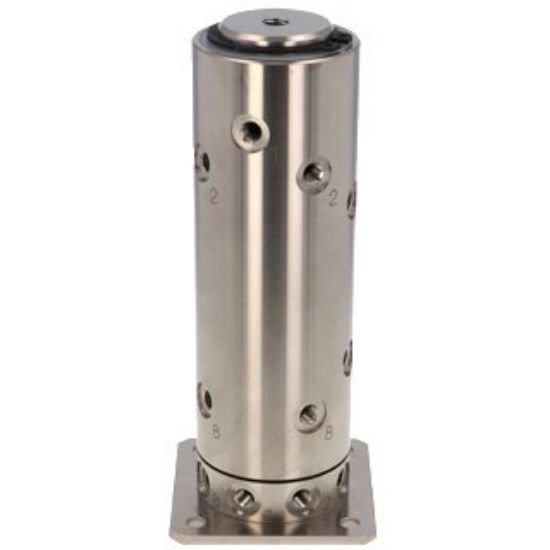

Pisco RB8-M5 Rotary Block

Pisco RB8-M5 Rotary Block

Size
Female thread size (M1): M5×0.8
Female thread size (M2): M5×0.8

Features
● Ideal for piping parts of rotating parts such as index tables.
- Secure 8 circuits with one unit.

Specifications
● Fluid used: Air
● Maximum operating pressure: 0.9 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (non-freezing)
●Allowable rotation speed: ^70min-1
- Rotation torque: 1N ・ cm

Material
● Metal body: brass + electroless nickel plating

Mass

950g
