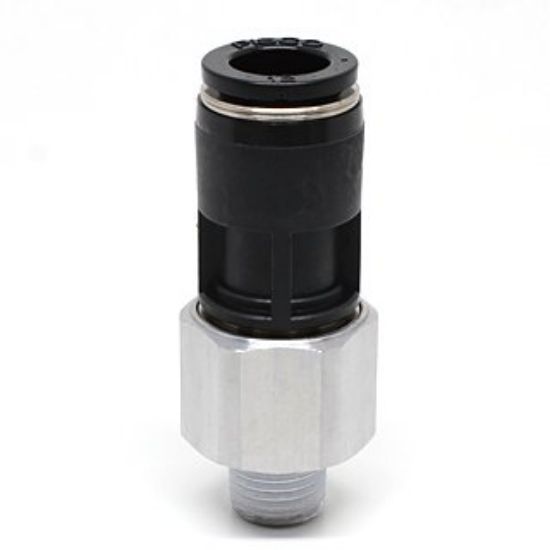

Pisco RC12-02 Rotary Joint

Pisco RC12-02 Rotary Joint
Manufacturer: Pisco
SKU: PS-RC12-02
Manufacturer part number: RC12-02

Pisco RC12-02 Rotary Joint

Size
Tube outer diameter (φD): 12mm
screw size (R): R1/4

Features
● One-touch fittings that can be piped to the swinging and rotating parts of equipment.
- Since bearings are used for the rotating part, it can be used for the swing part and the rotating part.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 250min-1
- Rotation torque: 2.5N / cm

Material

● Resin body: PBT
● Metal body: brass + chrome plating
● Open ring: POM
● Seal rubber: NBR, FKM

Mass

94g
