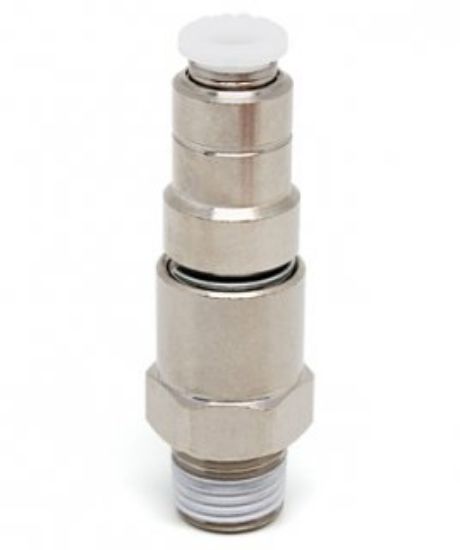

Pisco RHC1/4-02 High Rotary Joint

Pisco RHC1/4-02 High Rotary Joint
Manufacturer: Pisco
SKU: PS-RHC1/4-02
Manufacturer part number: RHC1/4-02

Pisco RHC1/4-02 High Rotary Joint

Size
Tube outer diameter (φD): 1/4
screw size (R): R1/4

Features
● One-touch fitting corresponding to fast moving and high rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0 MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (without freezing)
●Allowable rotation speed: 1200min -1
●Rotation torque: 1.5N/cm

Material
●Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR, FKM

Mass

56g
