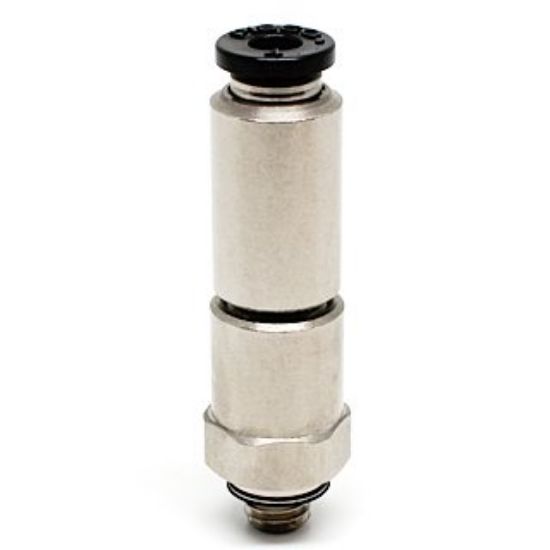

Pisco RHC4-M6 High Rotary Joint

Pisco RHC4-M6 High Rotary Joint
Manufacturer: Pisco
SKU: PS-RHC4-M6
Manufacturer part number: RHC4-M6

Pisco RHC4-M6 High Rotary Joint

Size
Tube outer diameter (φD): 4mm
screw size (M): M6×1

Features
● One-touch fitting corresponding to fast-moving and high-rotation parts.
- Since we use two bearings, it can be used for fast moving parts and high rotation parts that can not be used with rotary joints.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa
●Vacuum pressure used: -100 kPa
●Operating temperature range: 0 to 60 °C (non-freezing)
●Allowable rotation speed: 1500min -1
●Rotation torque: 1.5N/cm

Material
●Metal body: brass + electroless nickel plating
●Open ring: POM
●Seal rubber: NBR, FKM

Mass

24g
