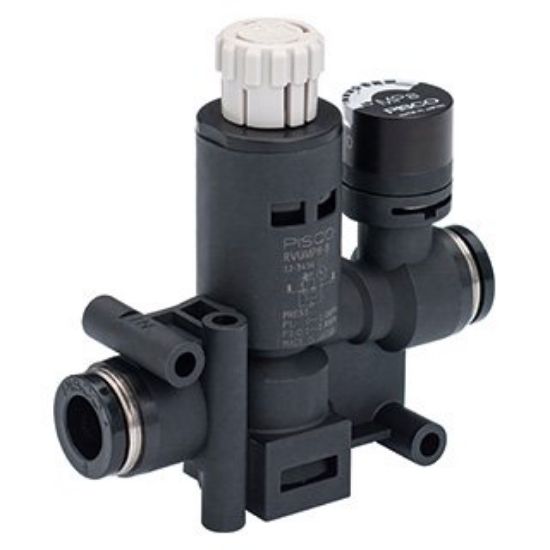

Pisco RVUMP6-4 Regulator w/ Push Lock

Pisco RVUMP6-4 Regulator w/ Push Lock
Manufacturer: Pisco
SKU: PS-RVUMP6-4
Manufacturer part number: RVUMP6-4

Pisco RVUMP6-4 Regulator w/ Push Lock

Size
Tube outer diameter (IN) (φD1): 6 mm
Tube outer diameter (OUT) (φD2): 4 mm

Features
● Fixed by push-lock type tsuma, pressure control work is easy and reliable.
● Prevents loosening of the lock nut due to the shaking of the machine.
- Due to the new structure, the flow rate increased by about 1.3 times compared to the current product. In addition, the pressure fluctuation range is reduced.
- With relief mechanism: convenient for adjusting equipment.
- With backflow mechanism: Installed between the solenoid valve and the actuator and can be used as a checkable regulator.
- Type with pressure gauge is also a lineup.

Specifications
●Fluid used: Air
●Operating pressure range: 0 to 1.0 MPa
●Set pressure range: 0.1 to 0.8 MPa
●Operating temperature range: 0 to 60°C (without freezing)
- Display pressure range: 0 to 0.8 MPa
● Accuracy (gauge): ±5% (full scale)

Material
● Resin body: PBT
with glass ● Metal body: brass + electroless nickel plating
- Open ring: POM
● Seal rubber: NBR, HNBR

Mass

23g
