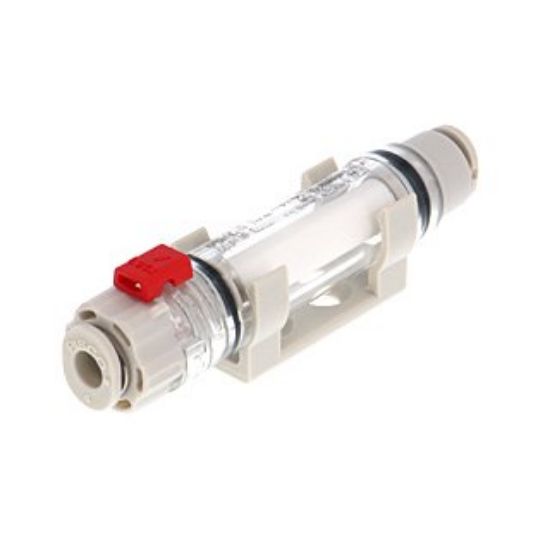

Pisco SFU1-44 Filter (Pressure & Vacuum)

Pisco SFU1-44 Filter (Pressure & Vacuum)
Manufacturer: Pisco
SKU: PS-SFU1-44
Manufacturer part number: SFU1-44

Pisco SFU1-44 Filter (Pressure & Vacuum)

Size
Tube outer diameter (φD): 4 mm
Filtration area: 4.7 cm²

Features
● The usability of conventional vacuum filters (VFU series) remains the same, and can be used even at positive pressure.
● Ideal for applications that do not require excessive filtration. : When using positive pressure, please use it like a pre-filter.
● Easy maintenance. Easy operation when changing elements is no tool required.

Specifications
● Fluid used: Air
● Maximum operating pressure: 1.0MPa (at 20 °C)
● Vacuum operating pressure: -100 kPa
● Pressure resistance: 1.5 MPa
● Filtration excess: 5 μm (collection efficiency: 95%)) ( According to our measurement conditions)
● Operating temperature range: 0 to 50 °C (unflyed)

Material
●Resin body: PBT
●Open ring: POM
●Cover: PCTG
- Seal rubber: NBR
● Element: PVF

Mass

8g
