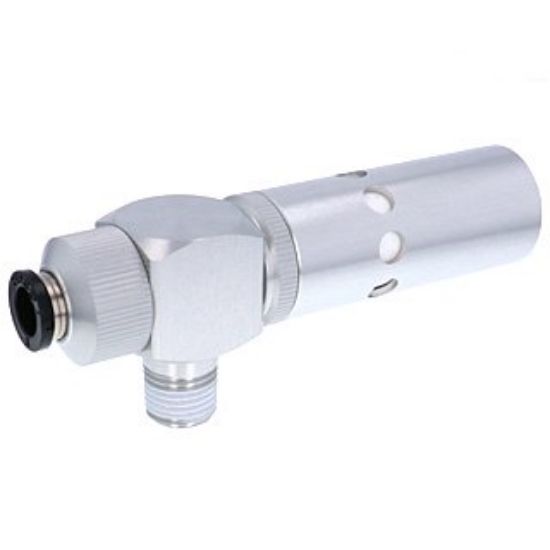

Pisco VCH15-028C Vacuum Generator VC

Pisco VCH15-028C Vacuum Generator VC
Manufacturer: Pisco
SKU: PS-VCH15-028C
Manufacturer part number: VCH15-028C

Pisco VCH15-028C Vacuum Generator VC

Size
Vacuum port screw size (V): R1/4
air supply port tube outer diameter (P): 8mm

Vacuum characteristics
High vacuum degree
nozzle diameter: 1.5mm
To reach vacuum degree: -93kPa
Suction flow rate: 63L/min(ANR)
Consumption flow rate: 100L/min(ANR)

Features
●Compressed air can be changed to vacuum and combined with a vacuum pad to convey workpieces (things).

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

87g
