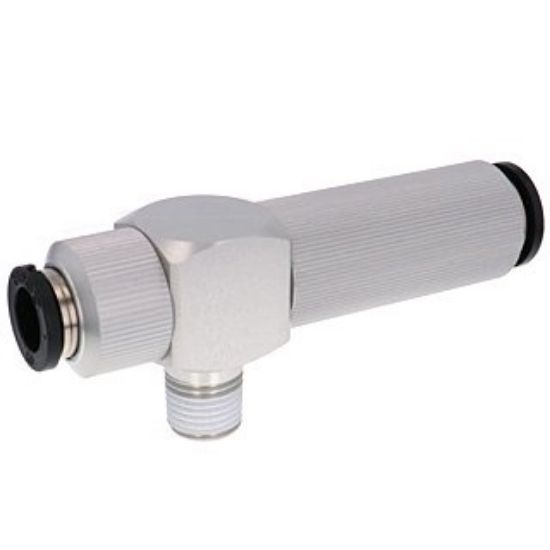

Pisco VCL15-0210CJ Vacuum Generator VC

Pisco VCL15-0210CJ Vacuum Generator VC
Manufacturer: Pisco
SKU: PS-VCL15-0210CJ
Manufacturer part number: VCL15-0210CJ

Pisco VCL15-0210CJ Vacuum Generator VC

Size
vacuum port screw size (V): R1/4
air supply port tube outer diameter (P): 10mm
exhaust port tube outer diameter (EX): 12mm

Vacuum characteristics
Large flow type
Nozzle diameter: 1.5 mm
Arrival vacuum degree: -66 kPa
Suction flow rate: 95 L / min (ANR)
Consumption flow rate: 100 L / min (ANR)

Features
● Change compressed air into vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: Aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

98g
