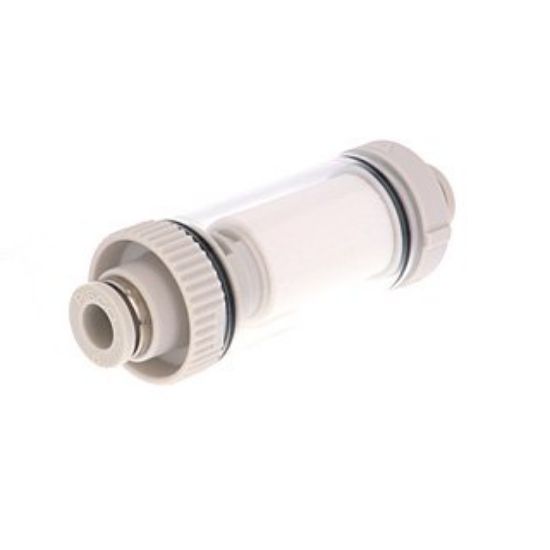

Pisco VFU3-66P-NH Vacuum Filter

Pisco VFU3-66P-NH Vacuum Filter

Size
Tube outer diameter (φD): 6mm

Filtration area
12.5cm²

Features
●Remove dust and water droplets sucked in by vacuum generators.
- It is easily installed in the middle of piping, and the piping resistance is small and stable.

Specifications
● Fluid used: Air
● Operating pressure range: -100 to 0 kPa
● Filtration excess: 5 μm (collection efficiency: 95%) (depending on our measurement conditions)
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal part: Brass + electroless nickel plating
● Seal rubber: NBR
● Filter cover: PCTG
● Filter element: PVF

Mass

27g
