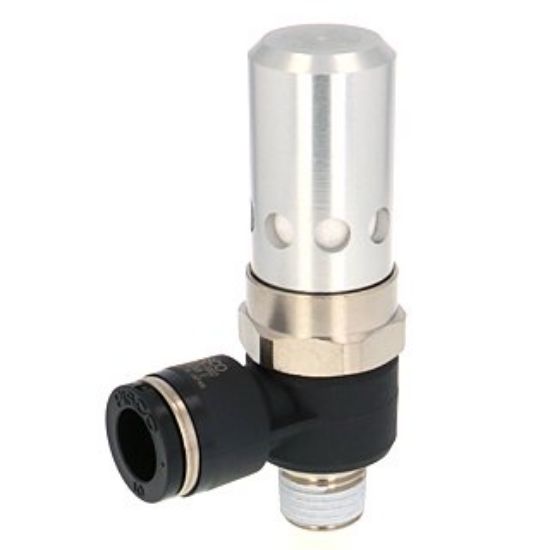

Pisco VHE15-1002 Vacuum Generator VH

Pisco VHE15-1002 Vacuum Generator VH
Manufacturer: Pisco
SKU: PS-VHE15-1002
Manufacturer part number: VHE15-1002

Pisco VHE15-1002 Vacuum Generator VH

Size
Vacuum port tube outer diameter (V): 10mm
Air supply port screw size (P): R1/4

Vacuum characteristics
Low supply pressure high vacuum degree
nozzle diameter: 1.5mm
Reach vacuum level: -92kPa
Suction flow rate: 42L/ min (ANR)
Consumption flow rate: 70L / min (ANR)

Features
● Change compressed air to vacuum, Can be used for conveying workpieces (things) in combination with vacuum pads.

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.35 MPa
● Operating temperature range: 0 to 60 °C (without freezing)

Material
● Resin body: PBT
● Metal body: brass + electroless nickel plating, aluminum
● Open ring: POM
● Seal rubber: NBR

Mass

80g
