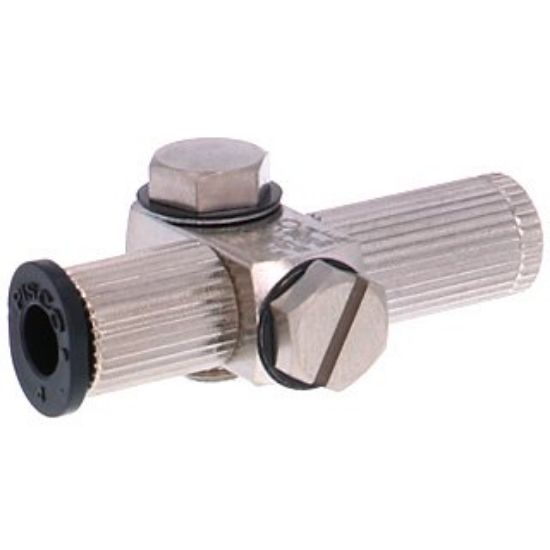

Pisco VMH05-M54 Vacuum Generator VM

Pisco VMH05-M54 Vacuum Generator VM

Size
Vacuum port screw size (V): M5×0.8
Air supply port tube outer diameter (P): 4mm

Vacuum characteristics
High vacuum degree
nozzle diameter: 0.5 mm
To reach vacuum degree: -90kPa
Suction flow rate: 7L/min(ANR)
Consumption flow rate: 11.5L/min(ANR)

Features
●Compressed air can be changed into a vacuum and combined with a vacuum pad to convey workpieces (things).

Specifications
● Fluid used: Air
● Operating pressure range: 0.15 to 0.7 MPa
● Rated supply pressure: 0.5 MPa
●Operating temperature range: 0 to 60 °C (without freezing)

Material
● Metal body: brass + electroless nickel plating
● Open ring: POM
● Seal rubber: NBR

Mass

17g
